User's guide for iConvert
×
Menu
Indice

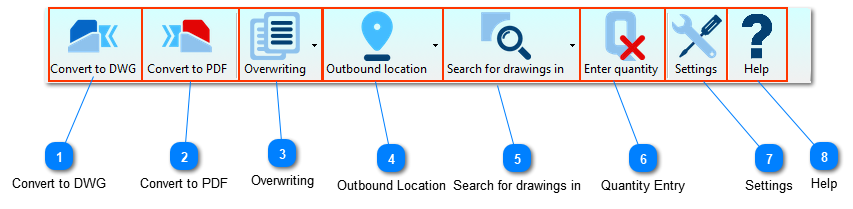

Toolbar

Toolbar
1

Convert to DWG


1. Convert to DWG
Converts the checked drawings to AutoCad dwg and saves them to the destination folder.
If a document with the same namealready exists in the destination folder, than the conversion of this one is skipped.
2

Convert to PDF


2. Convert to PDF
Converts checked drawings to PDF documents and saves them to destination folder.
If a document with the same name already exists in the destination folder, then the convertion of this one is skipped.
3

Overwriting


3. Overwriting
Opens a pop-up menu with the following options
  • Overwrite if the document already exists: all files will be re-exported
  • Do not overwrite if the document already exists: the files already present are not re-exported
4

Outbound Location


4. Outbound Location
Opens a pop-up menu with the following options
  • Same location: Converts the files and saves them to the same location as the original. If you use Inventor's DWG drawings, convertions will have the suffix " - C"
  • Same structure but other location: Converts the files and saves them to a folder structure identical to the original but that resides in a different location on the computer
  • Single folder: Converts the files and saves them all to a folder chosen by the user
  • According to the order of the list: Converts the files and saves them according to the order in which they are divided in the Inventor's list. Each assembly generates a new folder
5

Search for drawings in


5. Search for drawings in
Opens a pop-up menu with the following options
  • Search in the same location of the model (search drawings only in the folder where the model is located)
  • Search throughout the work space (search drawing within the entire workspace)

6

Quantity Entry


Opzion disabled

Opzion enabled: the quantities of pieces for each drawing are printed at the position indicated in the settings menu
7

Settings


7. Settings
Opens the settings windows where you can set coordinates for the quantity text representation
After you have set the coordinates, it is recommended that you perform a test print
8

Help

8. Help
Open online help
